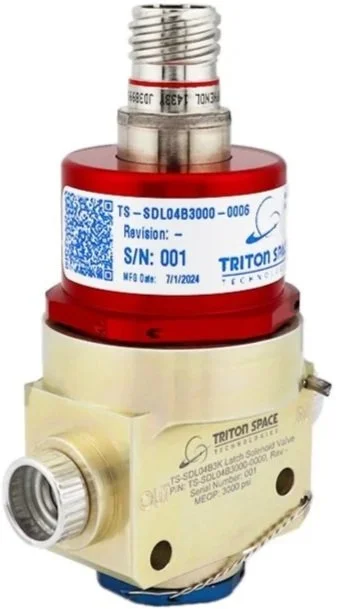

1/4” 2-Way Normally Closed Direct-Acting Latching Solenoid Valve

TS-SDL04B3000-0006

Key Features

  • Normally stocked product

  • Magnetic latching functionality

  • Compact design

  • 3,000 psi MEOP

  • Current draw < 1 A

  • Lightweight – under 1 lb

  • Service fluids: GN2, GHe, CH4, GH2, GO2, RP-1

Product Overview

The TS-SDL04B3000-0006 from Triton Space Technologies is a simple, compact, lightweight, direct-acting, latching solenoid valve. This valve is designed specifically for service in high-pressure applications, such as fill, vent, bleed and isolation valves for pneumatic and hydraulic systems. The latching mechanism utilizes powerful permanent magnets and can be de-latched by reversing polarity of the applied voltage. Use of an O-ring main seat affords a low parts count, simple, and robust design. The TS-SDL04B3000-0006 is purpose built for 21st century spaceflight applications. Contact us today for more information or to place your order.
