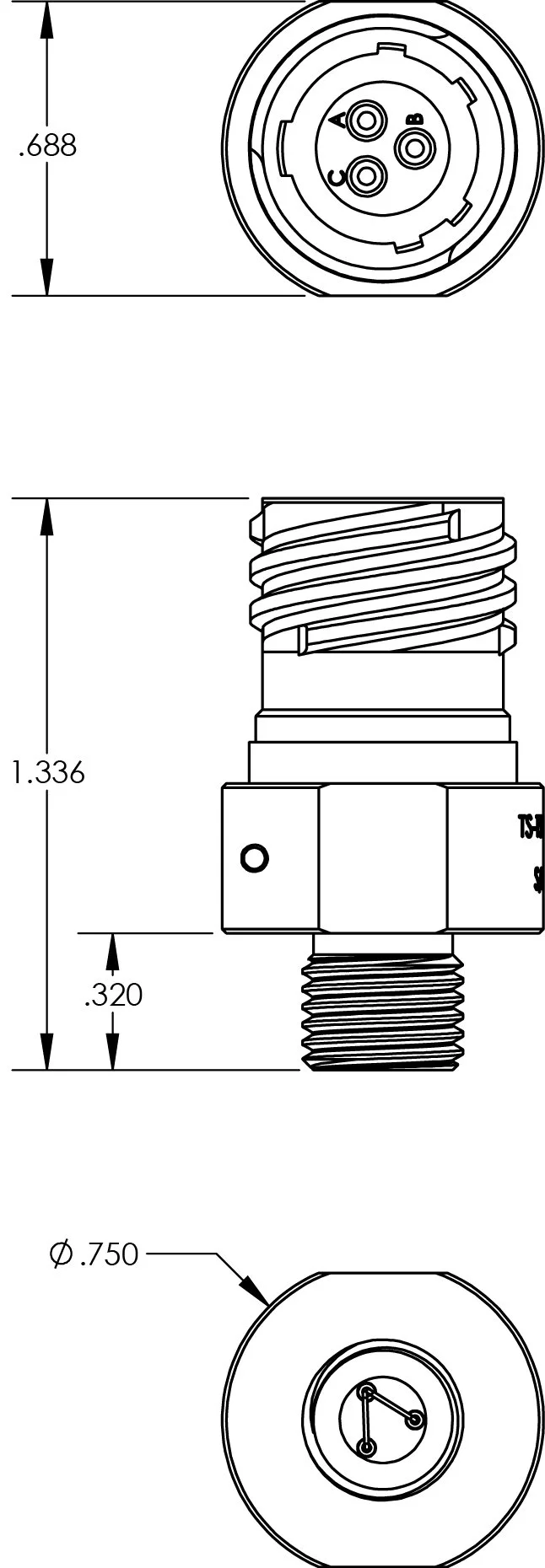

Triton Standard Initiator, 300 Series
TSI-300
Key Features
Redundant bridge wires
Same electrical and threaded interface as industry “Gold Standard” NASA Standard Initiator
High-pressure, reliable, glass-to-metal sealing technology
High ignition current, not susceptible to low power ESD events
Sold INERT so no hazardous materials shipping complications
Customer installs pyrogen of their choice
Product Overview
The TSI-300 from Triton Space Technologies is a high-quality pyrotechnic initiator comprised of a stainless-steel housing and features a high-pressure, hermetic, glass-to-metal seal that permits use in applications with operating pressures up to 10,000 psi while remaining bubble leak tight. The TSI-300 uses a modern MIL-38999 electrical connector interface and redundant bridge wires to improve reliability. Uniquely, the TSI-300 is sold as an inert electrical device thereby eliminating the logistical complications of current pyrotechnic devices. Specifically, no ATF licenses are needed to purchase and transport the product and no hazardous shipping charges are incurred. The TSI-300 enables rapid, low-cost testing at a fraction of the price typically required with NASA Standard Initiators. The TSI-300 is purpose built for 21st century spaceflight systems testing. Contact us today for more information about the TSI-300, or to place your order.
